Scout: Tactical VTOL ISTAR / Signal Relay Platform

NATO Class I (b) Mini UAV
– Tactical VTOL ISTAR/Signal Relay Platform
Watch Video
Фото 1 - ScoutФото 2 - Scout
Video ISTAR UAV
A versatile multirotor UAV with extended flight performance.
Typical operational roles for the Scout are video ISTAR and signal relay for FPV drones and secure communications systems. It is most effective in scenarios where vertical takeoff and landing are required while the survey area is relatively small.
Фото 3 - Scout
Фото 4 - Scout
up to 12 km
Controlled radius range
Фото 5 - Scout
60 min
Max endurance
Фото 6 - Scout
1000 m
Max altitude
Фото 7 - Scout
1,8 kg
Payload capacity
Фото 8 - Scout
7,8 kg
Max takeoff weight
Фото 9 - Scout
1,15 m
Width
Фото 10 - Scout
25 min
Deployment time
Фото 11 - Scout
40 km
Max flight distance
Фото 12 - Scout
70 km/h
Max speed
Фото 13 - Scout
1,05 m
Length
Фото 14 - Scout
VTOL
Launch method
Key Capabilities
Фото 15 - Scout
Secure Communication
The aircraft is equipped with anti-jamming GNSS, video communication and telemetry transmission systems, ensuring resilient and uninterrupted data exchange.
Фото 16 - Scout
Tactical Signal Relay
The UAV provides secure connectivity in denied or infrastructure-limited environments, operating as an airborne communication hub.
Фото 17 - Scout
VTOL Capability
Scout enables vertical takeoff and landing without additional equipment, enabling rapid deployment and simplifying field logistics.
Payloads
SONY LR1
  • EO Zoom Depends on lens
  • Clear Image Zoom: up to 2x
  • EO Resolution 9504 × 6336 px
  • Equivalent focal length 21…70 mm
  • Image resolution (GSD) 1…10 cm
Фото 18 - Scout

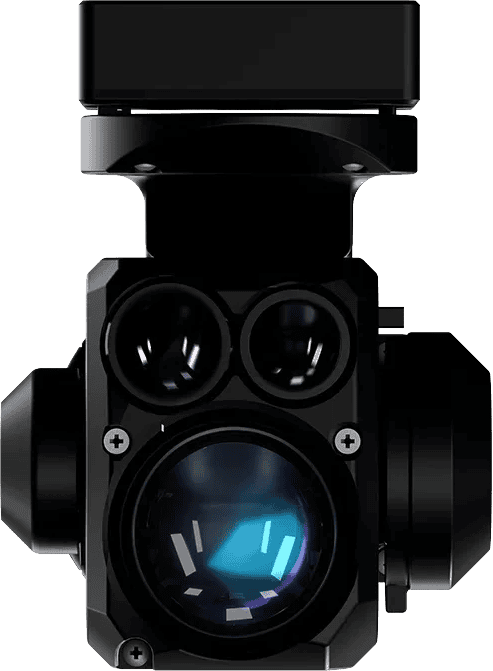

NextVision X80
  • EO Zoom 80x visual zoom (40x optical 2x digital)
  • EO Resolution 1280 x 720 px
  • DRI 25 / 12 / 6 km
Фото 19 - Scout
Фото 20 - ScoutФото 21 - Scout
Operational Advantage for Short-Range Reconnaissance
Designed for space-constrained missions, the Scout is a compact UAV that provides effective short-range reconnaissance and secure signal relay. Its VTOL design enhances operational efficiency without requiring large launch areas.

What’s Included

UAV Scout comprising:

  • automatic flight controller,
  • power plant,
  • onboard navigation system,
  • NextVision X80 camera (day: 1280×720, 40x/2x zoom) on a gimbal with camera controller,
  • video link kit,
  • set of rechargeable batteries (3 pcs),
  • battery charger,
  • GPS tracker,
  • transport case.
2

Ground workstation with remote monitoring and control system, licensed for the use of IRIZI Focus-V software, which provides AI-based video stream analysis, target transfer to GIS, and restreaming of the feed to other systems.

1

Hardware-software multi-frequency, multi-system onboard GNSS receiver Shaper X5.

2

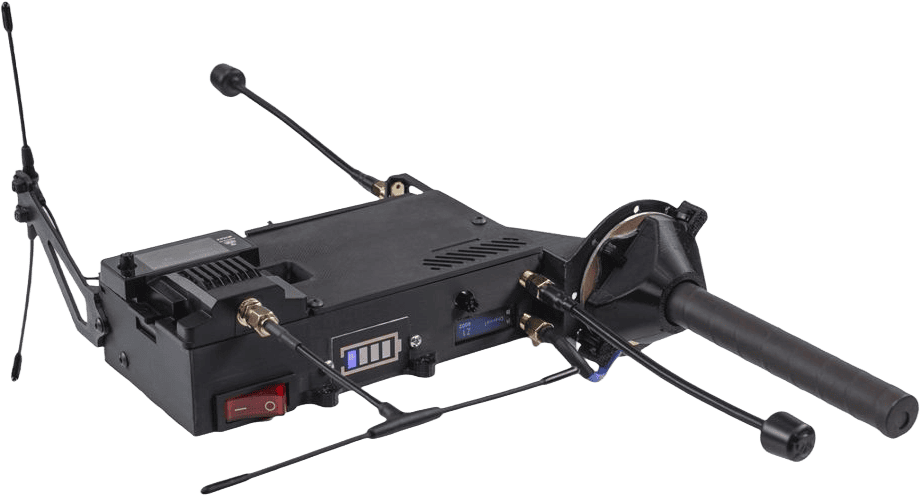

Ground antenna system with a jamming-resistant remote control and telemetry system.

1
Фото 22 - Scout
